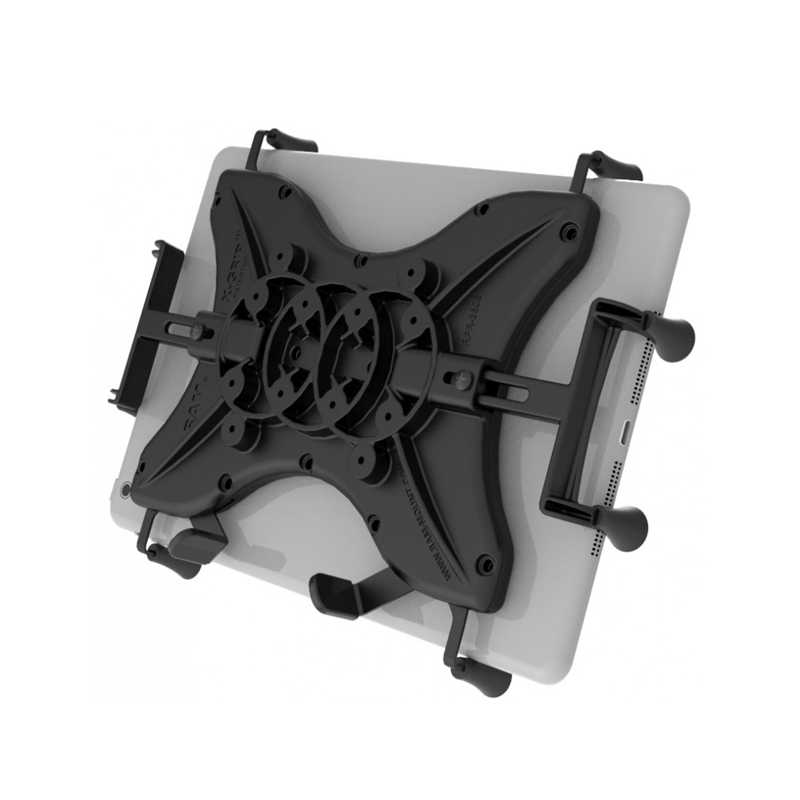

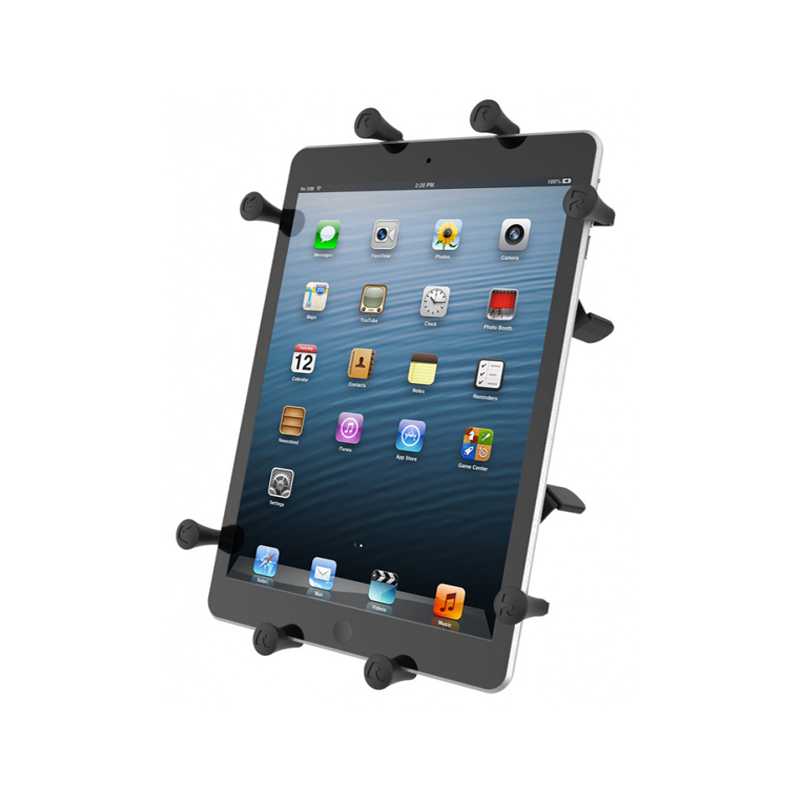

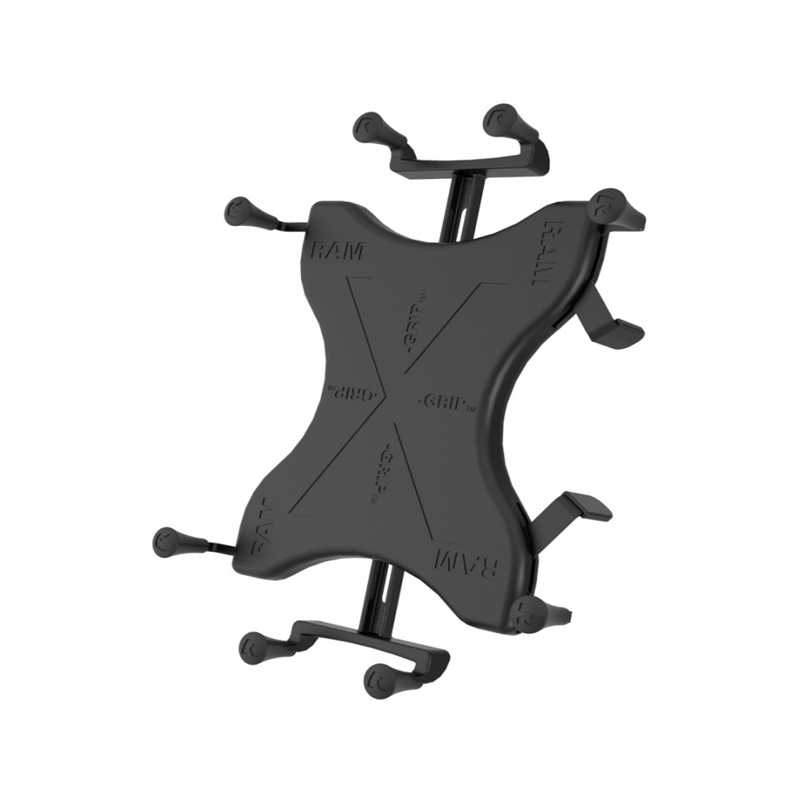

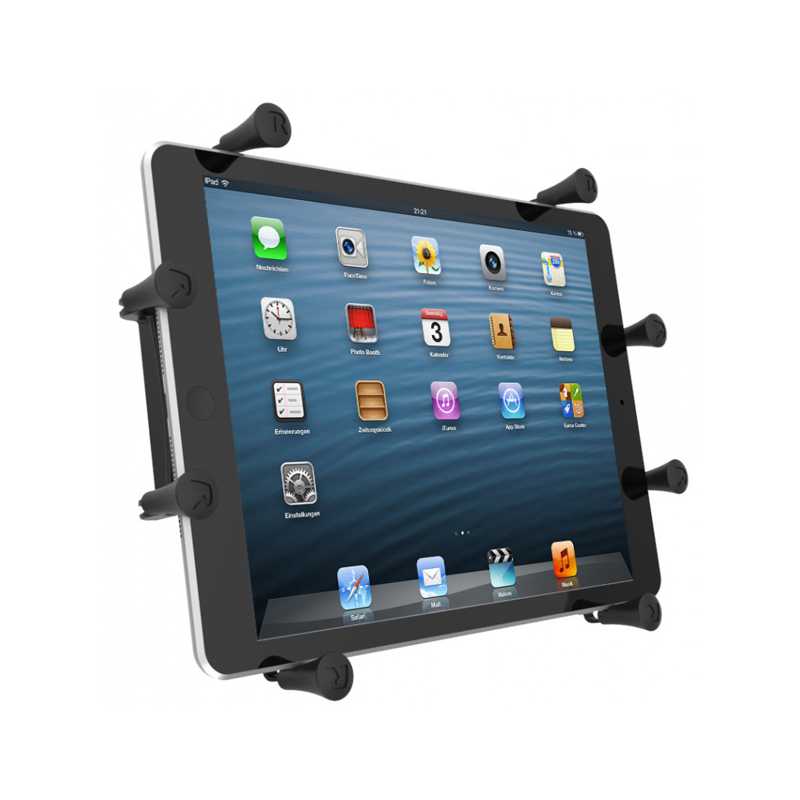

The RAM-HOL-UN9U consists of a composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The RAM-HOL-UN9U expands and contracts for perfect fit of most 10″ tablets with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below for compatibility with the X-Grip® III.
The X-Grip® holder is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Minimum Width = 6.25″
Maximum Width = 8.1″
Depth = 0.875″
Maximum Length (using additional supports) = 10.25″
1. Spring loaded cradle expands and contracts for perfect fit of your tablet
2. Rubber coated tips will hold your tablet firm and stable
3. Versatility of cradle allows for attachment to many 1″ socket mounts
4. Socket technology allows for multiple adjustment angles and articulation of your tablet
5. Easy access grip knobs, located on the back of the cradle for quick release of your tablet
6. Multiple mounting access points on the back of the cradle
7. Additional support keeper at the bottom of the cradle
8. Full access to all ports
9. Lifetime warranty
10. Made in the U.S.A.
Marine Grade Stainless Steel Components & High Strength Composite
The “U” in the part number reflects product packaged in poly bag.
X-Grip® III Assembly Instructions
